DDA-48DT

Beschrijving

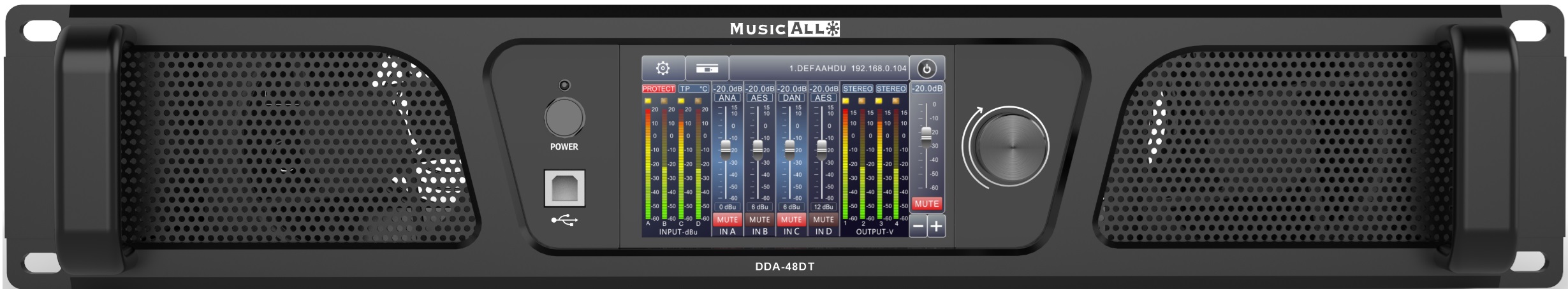

DDA-48DT is a 4 channel network DSP power amplifier, 4x1600W@, with integrated DSP processor, 4.3 ” capacitive touchscreen color

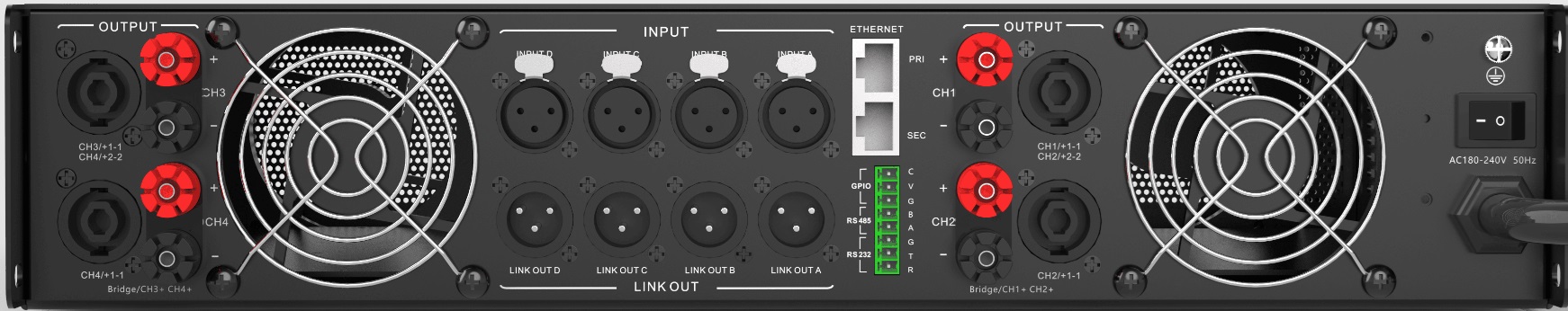

display and other powerful functions. This power amplifier supports a variety of input methods: analog/AES3/Dante
network. Users can select each analog or Dante signal with its priority, to realize signal backup function. Lockable menu.

Supports constant resistance 8Ω/4Ω and constant voltage 100V/70V. Standard FIR automatic linear magnitude and phase function provides a
powerful setting method for speakers.

The installer can set a maximum output power / voltage / current for every channel. This amplifier can be used with any
speaker in any project. It can be customized to all conditions.

Users can monitor power, current, voltage, temperature and impedance from the display in real time. With RJ45/USB and

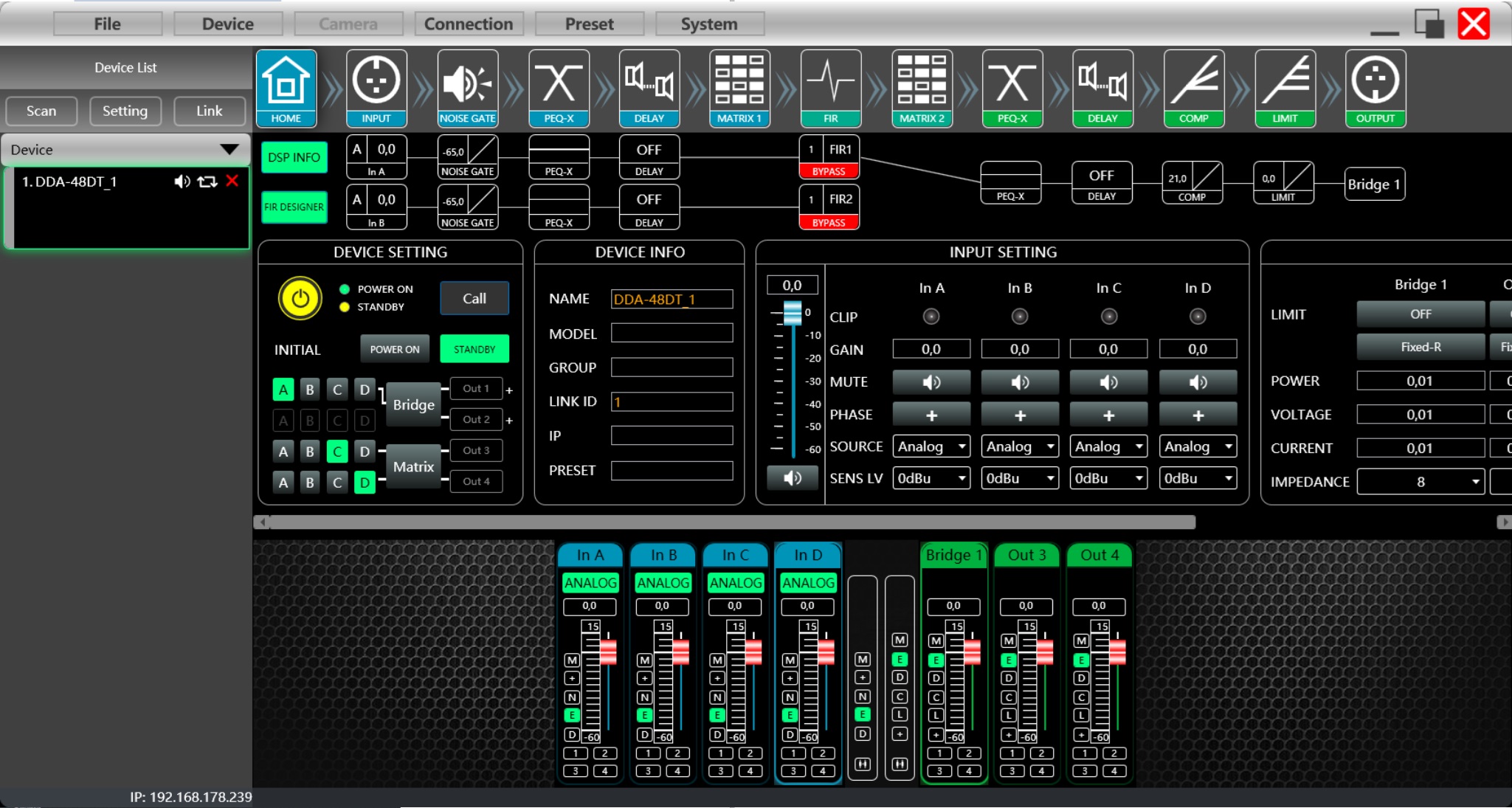

common serial connector, the supplied PC software MusicAllDSP provides users a easy way to control multiple devices.
