DDA-2300

Beschrijving

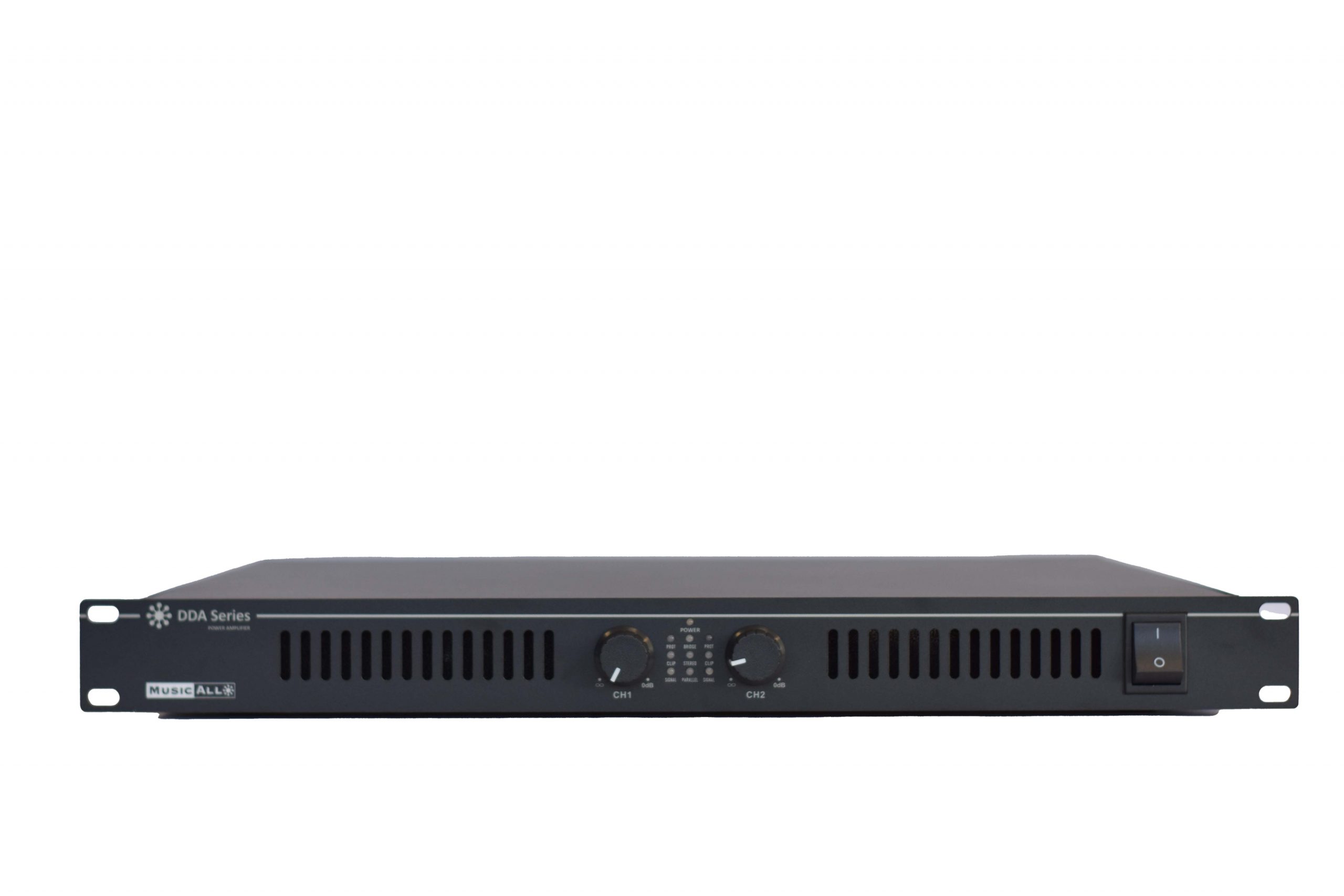

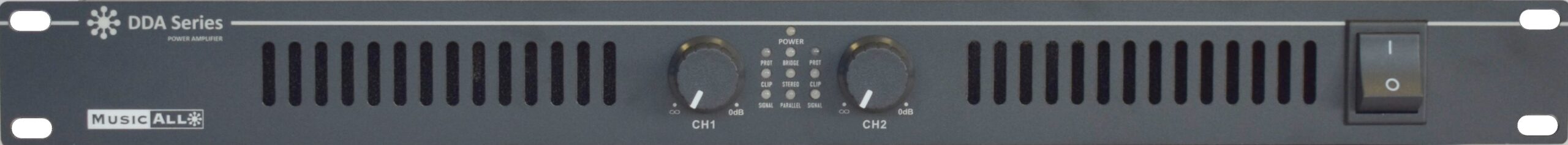

The DDA-2300 class-D power amplifier is equipped with a switching powersupply, which features minimum power
consumption and high efficiency up to 85%. It saves installation rack space, generates less heat with a higher life span as a
result. The DDA-2300 power amplifier has a rated power output power of 2x300W @8Ω. Output mode selector of stereo,
parallel and bridge.

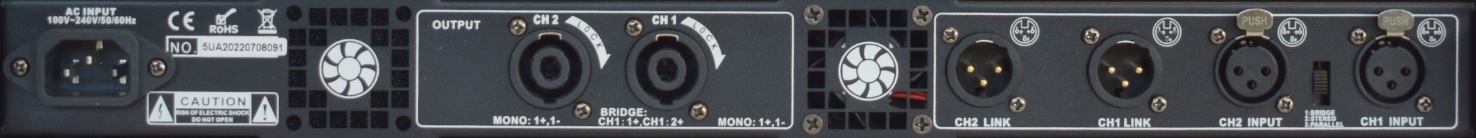

2× Input by balanced XLR male connector, 2× output by balanced Speakon female connector . Status indicators protection,
clip, input and output for easy supervision. Complete protection includes clip, high temp, overload and short circuit

2x500W@4Ω, 2x300W@8Ω, 1x900W in bridge
