MDM-S32
€ 3.599,00 Excl. BTW

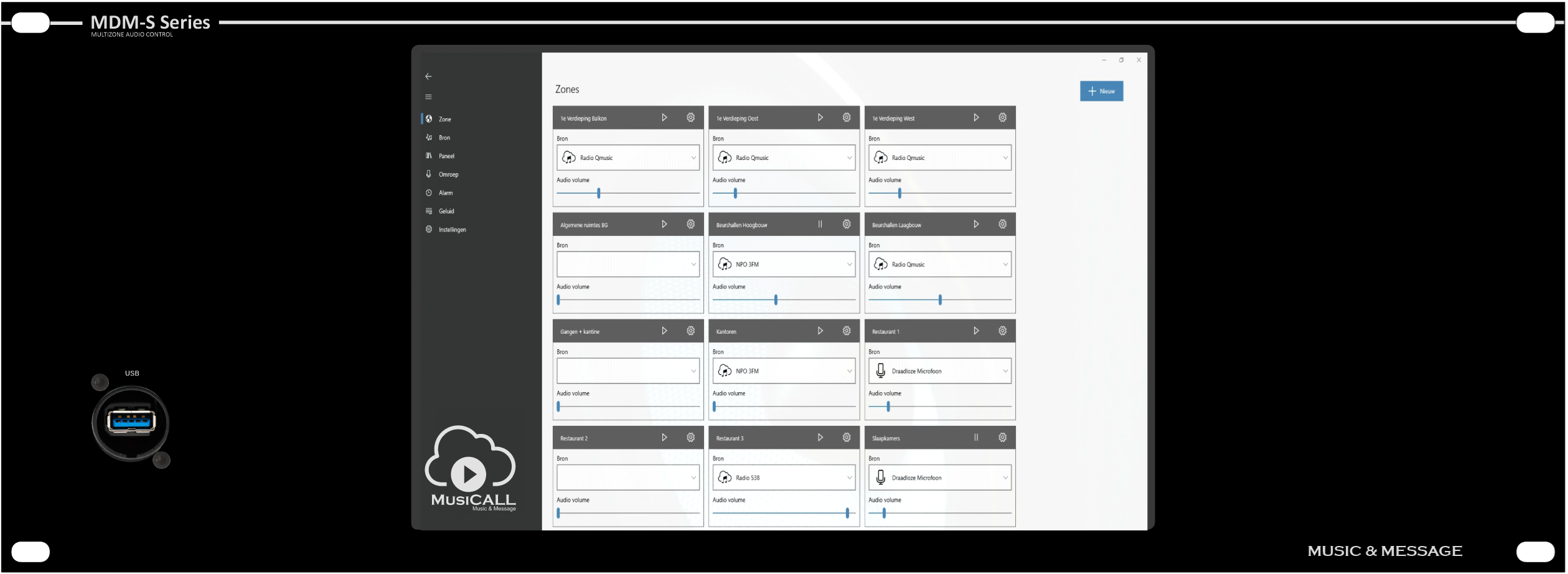

The MDM-S series MusiCall Music & Message server is a rack version with 10.1″ touchscreen. It can be used as central control unit and / or announcement console when combined with a microphone like MDM-MIC.
Beschrijving
MusiCALL systems with Dante® are easily expandable, need an extra speaker? Plug it in where you want!
Networks can be expanded and reconfigured at any time with just a few clicks. If you compare a MusiCALL audio installation with a conventional audio system, it is striking how much fewer building blocks are needed to set up a complete system. Ease of installation is great for the installer.
The MDM-S series MusiCall Music & Message server is a rack version with 10.1″ touchscreen. It can be used as central control unit and / or announcement console when combined with a microphone like MDM-MIC.
The MusiCALL software is packed with features:
Easy to use graphical interface
Priority messaging. Scheduled audio files (or manually triggered) to start on time (such as class times at schools or commercials in shops)
Internetradio. Standard presets with 15 internet radiostations, expandable.
Playlist player(for example themes in museums)
Priority annoucement. Groups or individual zones.
Auto start and stop of zones to save energy.
1 to 64 separate zones possible per main unit, upgradable.
| Hardware | |||
| CPU | Intel Core i3-1215U 6 core | Wifi | WiFi 6E (802.11ax) |
| Screen | G+G multi touch 10.1” | Bluetooth | Bluetooth 5.3 |
| Resolution | 1920 x 1080 (IPS) | Operating system | Windows IoT 2021 LTSC |
| Graphics | Intel UHD | Wired network | 1x RJ45 1Gbps and 1x RJ45 2.5Gbps |
| Memory | 8GB | Ports | 4x USB3.2 / 1x USB-C |
| Storage | 128GB SSD | Headphone jack | Combo 3.5mm mic/headphone |
| Size | 483 x 176 x 73mm, 4U | HDMI | 1x HDMI 2.0 (4k support), 1x Displayport |
| Operation temperature | -10°C ~ 50°C | Weight | 1,2 kg |
| Software | |||
| Zone outputs | MDM-S32: 32 (Dante®) channels for 32 mono zones or 16 stereo zones | Inputs | MDM-S32: 16 (Dante®) channels |
| Online support | 3 years included |
Datasheet
System brochure
