Beschrijving
MusiCALL systems with Dante® are easily expandable, need an extra speaker? Plug it in where you want!
Networks can be expanded and reconfigured at any time with just a few clicks. If you compare a MusiCALL audio installation with a conventional audio system, it is striking how much fewer building blocks are needed to set up a complete system. Ease of installation is great for the installer.

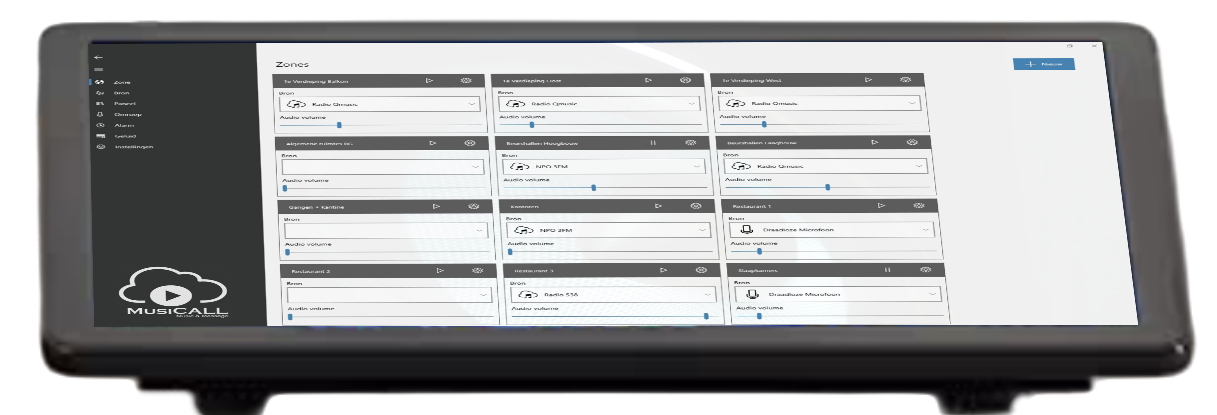

The MDM-T series MusiCall Music & Message server is a desk version with 10.1″ touchscreen. It can be used as central control unit and / or announcement console when combined with a microphone like MDM-MIC.
The MusiCALL software is packed with features:
Easy to use graphical interface
Priority messaging. Scheduled audio files (or manually triggered) to start on time (such as class times at schools or commercials in shops)
Internetradio. Standard presets with 15 internet radiostations, expandable.
Playlist player(for example themes in museums)
Priority annoucement. Groups or individual zones.
Auto start and stop of zones to save energy.
1 to 64 separate zones possible per main unit, upgradable.

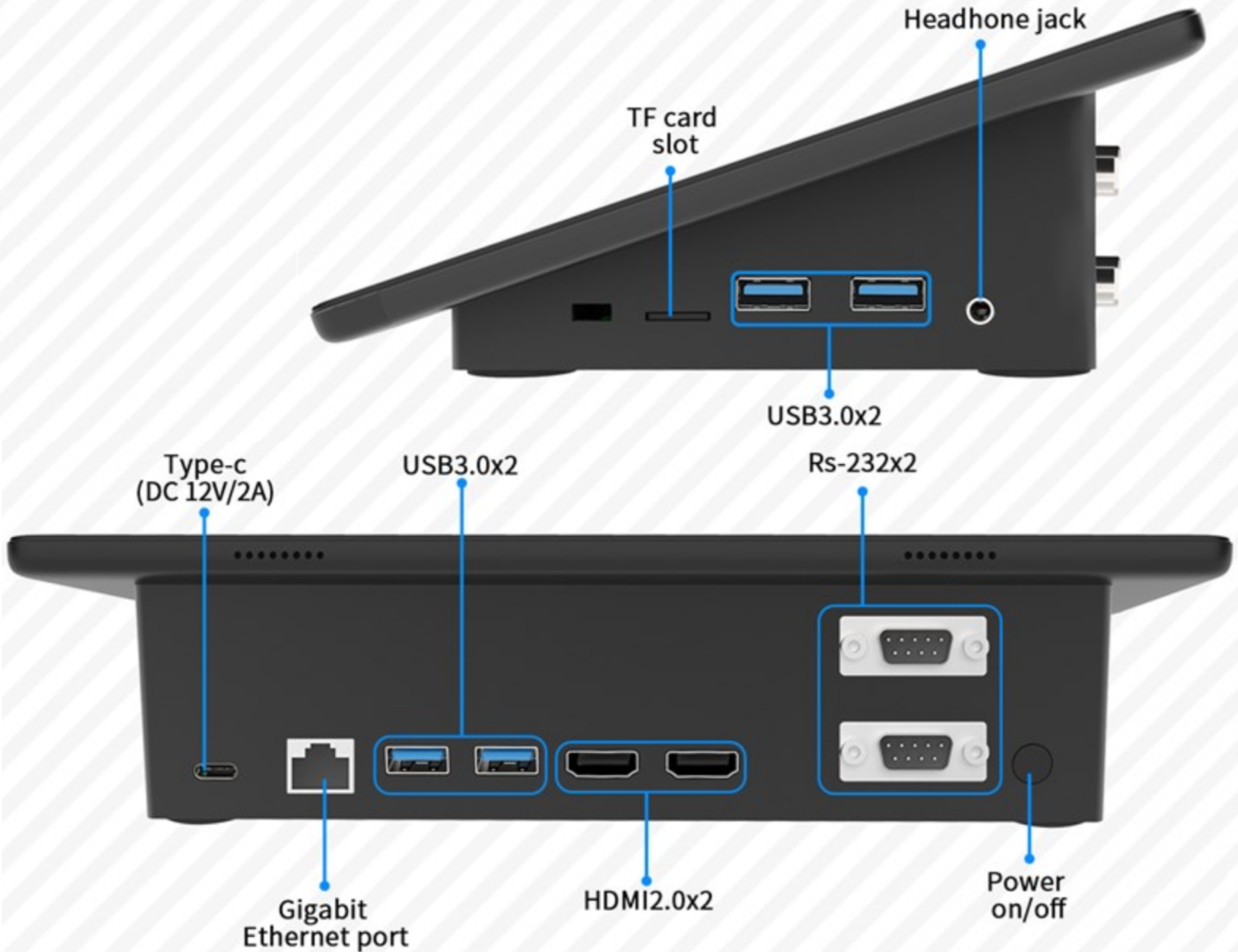

Hardware | |||
CPU | Intel Gemini Lake N4000 / N4120 | Wifi | 2.4 GHz & 5 GHz Dual frequency |
Screen | G+G multi touch 10.1” | Bluetooth | Bluetooth 5.0 |
Resolution | 1920 x 1200 (IPS) | Operating system | Windows IoT 2021 LTSC |
Graphics | Intel UHD 600 | Wired network | 1x RJ45 1000Mbps and 1x RJ45 1000Mbps via USB dongle |
Memory | 8GB | Ports | 4x USB3.0 / 2x RS232 |
Storage | 128GB EMMC drive and TF card slot | Headphone jack | Combo 3.5mm mic/headphone |
Size | 242 x 153 x 62mm | HDMI | 2x HDMI 2.0 (4k support) |
Operation temperature | -10°C ~ 50°C | Weight | 772g |
Software | |||
Zone outputs | MDM-T2: 2 (Dante®) channels for 2 mono zones or 1 stereo zones | Inputs | MDM-T2: 8 (Dante®) channels |
Online support | 3 years included |
