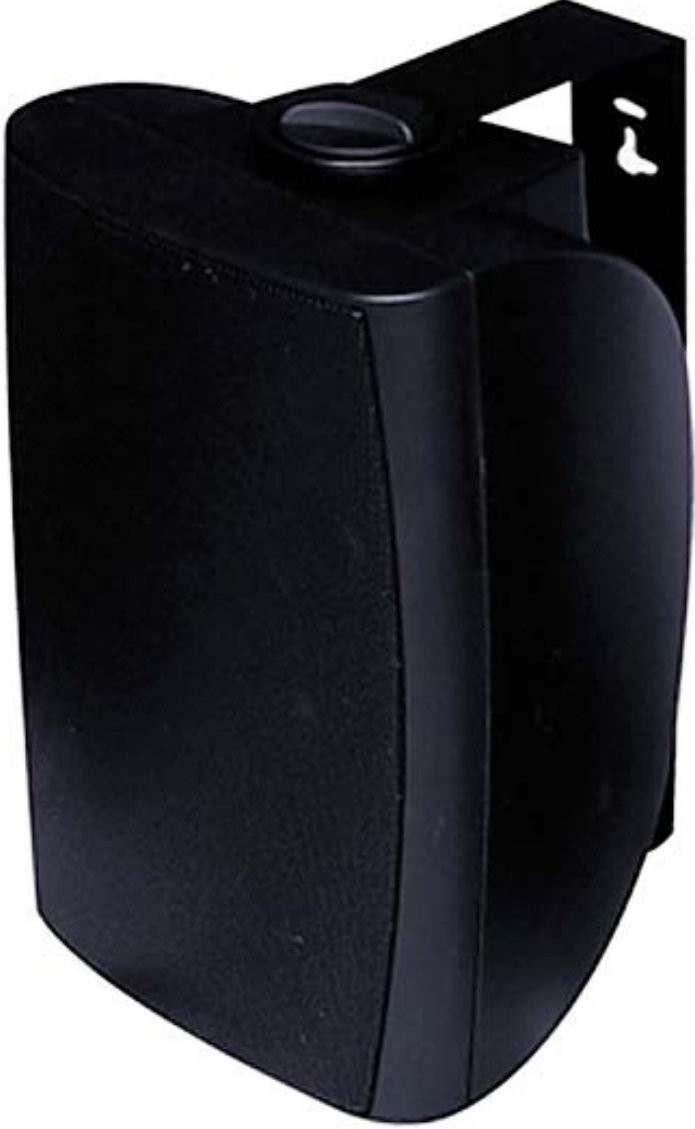

BS-60BA

Beschrijving

Two-way speaker with 8” woofer and 1” twitter, maximum power of 60 W RMS in 100 V line, with power taps of 30, 15 & 7.5 W. Also available the low impedance connection of 8 ohms. SPL 88 dB (1W) / 106 dB (60 W). Frequency Range 40 ~ 20,000 Hz. Dimensions 289 x 417 x 255 mm. Weight 6.6 kg.

Speaker                             Woofer 8”, tweeter 1”

Output power RMS        60 W

Power taps 100 V            60, 30, 15 & 7.5 W

Power taps 70 V              60, 30, 15, 7.5 & 3.75 W

Sensitivity                         88 dB SPL(1 W, 1 m, 1 kHz)

Sound Pressure               106 dB SPL (60 W, 1 m, 1 kHz)

Frequency Range            40 ~ 20.000 Hz

Dimensions (mm)            289 (width) x 417 (height) x 255 (depth)

Weight                               6,6 kg

Finish                                 Box in ABS & powder coated iron grille

Colour                                Black (BS-60BA), White (BS-60WA)

Mounting                          U type mounting bracket
