LUA10i

 799,00 Excl. BTW

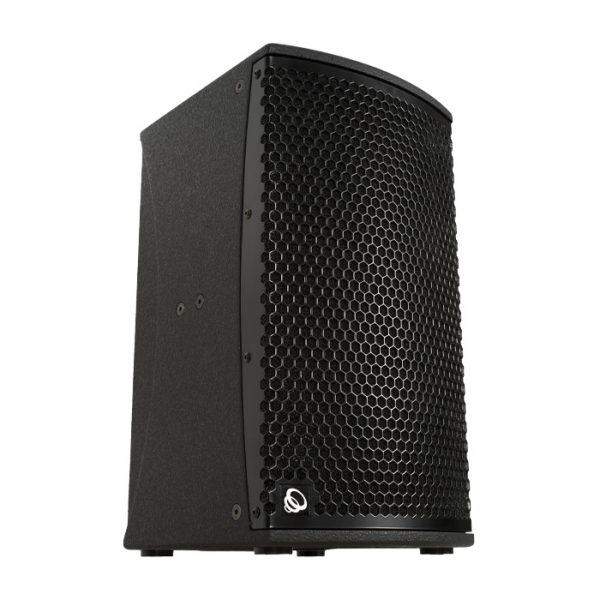

2-Way Install Loudspeaker 10″, 8Ω, 400W RMS

Beschrijving

LUA10i

2-Way Install Passive Loudspeaker

LUA10i is, out of the box, a true power-density delight, providing unexpectedly deep LF response with no additional adjustments or DSP processing required. LUA10i features a variety of options for wall-mount configurations with dedicated installation accessories, as well as a pole mount for AV portable applications.

  • Compact form-factor
  • Premium European high-efficiency custom IDEA transducers
  • Dedicated passive filter
  • 8 Ohm Passive
  • Dual Neutrik NL-4 connectors
  • Rugged 15 mm birch plywood construction and finish
  • Durable Aquaforce paint, available in standard textured black or white
  • Optional RAL colors on demand
Enclosure designRectangular
HF Transducer1 x 1.75˝ Compression Driver
LF Transducer1 x 10˝ Woofer
Power Handling (RMS)400 W
Nominal Impedance8 Ohm
SPL (Continuous/Peak)119/125 dB SPL
Frequency Range (-10 dB)50 – 18000 Hz
Frequency Range (-3 dB)75 – 17000 Hz
Coverage80° x 60˚ (H/V)
Dimensions (WxHxD)285 x 512 x 312 mm (11.2 x 20.2 x 12.3 in)
Weight17.4 kg (38.4 lb)
Connectors
+/-1
+/-2
2 x Neutrik speakOn NL-4 in parallel
Input
Link
Cabinet Construction15 mm Plywood
Grille1.5 mm perforated weatherised steel with protective foam
FinishDurable IDEA proprietary Aquaforce high-resistance paint coating process
Handles1 integrated rear handle
Feet4 rubber feet
Installation10 x threaded M8 inserts, 36 mm pole cup
AccessoriesVertical U-Bracket (UB-L10i-V)
Horizontal U-Bracket (UB-L10i-H)
35 mm Pole (K&M-21336)

Extra informatie

Installatie

Opbouw

DATASHEET

QS_LUA10i_EN
