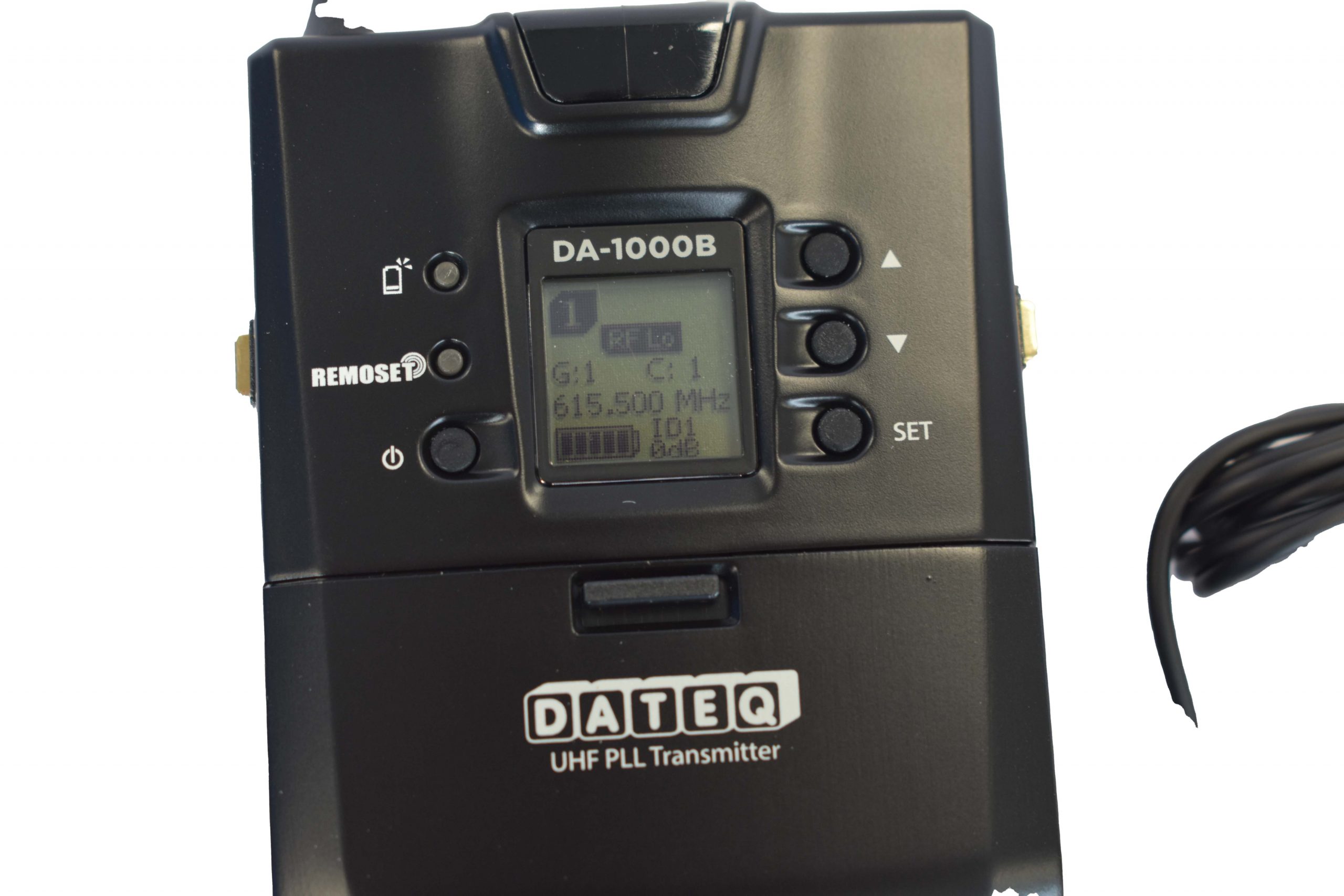

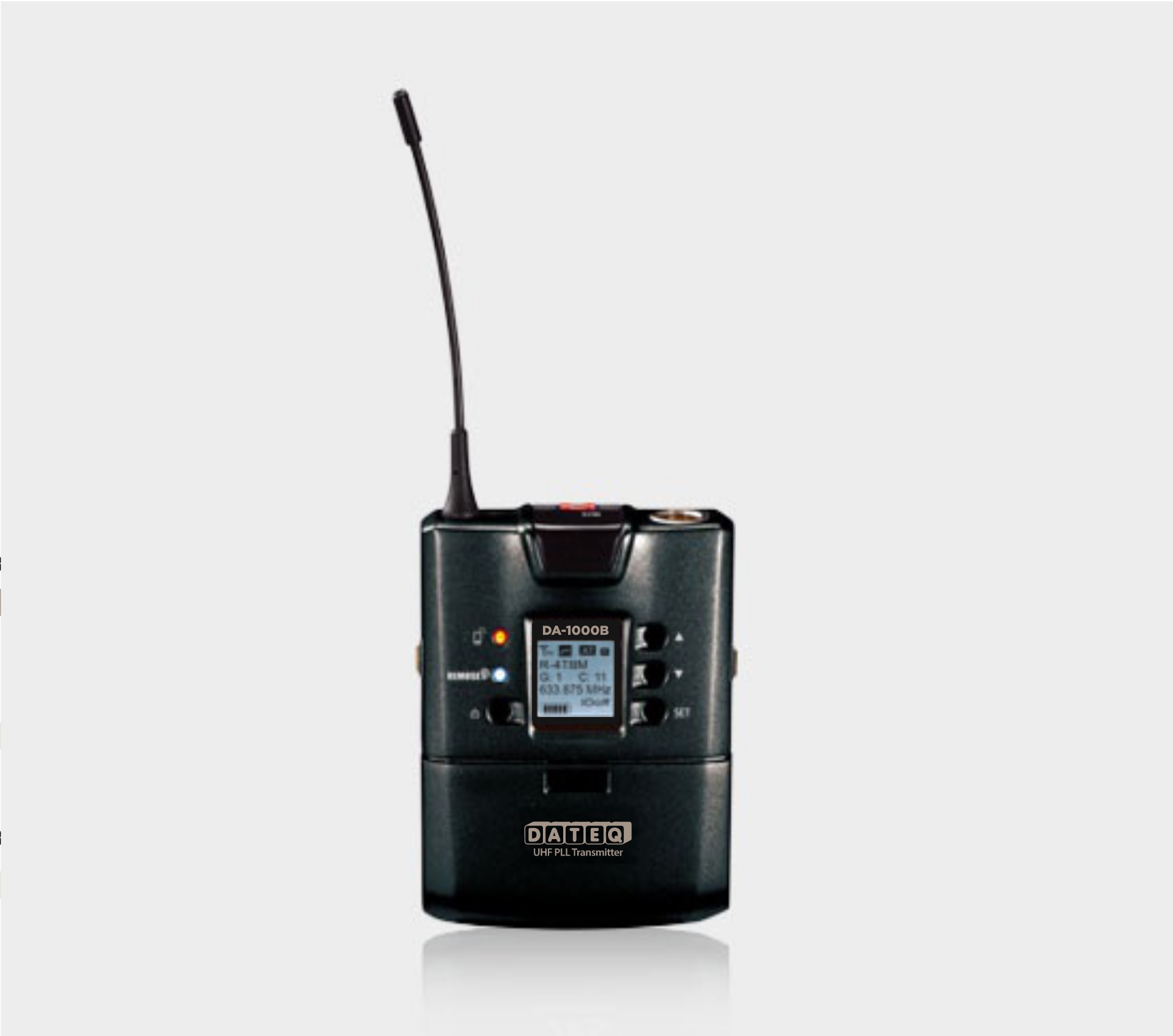

DA-1000B/6

 279,00 Excl. BTW

1000 Series diversity UHF PLL beltpack 614-650MHz, Remoset

Beschrijving

DA-1000B/6

* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Extended dynamic range and smooth frequency response.
* Adjustable transmission power between Low and High
* The panel Lock-On function prevents tampering and RF interruption
* Together with various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.

DA-1000B/6
Frequency PreparationPLL Synthesized Control
Carrier Frequency RangeUHF 614~650 MHz
Bandwidth108MHz Wideband
RF OutputsLow / High
Stability< ±10KHz
Frequency Deviation± 48KHz (Peak)
ChassisAluminium alloy
LCD DisplayGroup, Channel, Frequency, Battery Status, User Name , GAIN Adjust
ControlsPower ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector4P Mini XLR
Spurious Emissions<-50 dBC
Audio Frequency Response50Hz ~ 18k Hz
BatteryUM3, AA x2
Dimensions62mm (W) x80.3mm (H) x22.6mm (D)
Weight93g
