DA-800B/6

 149,00 Excl. BTW

800 Series diversity UHF PLL beltpack 614-650MHz, Remoset Ultrasonic

Beschrijving

DA-800B/6

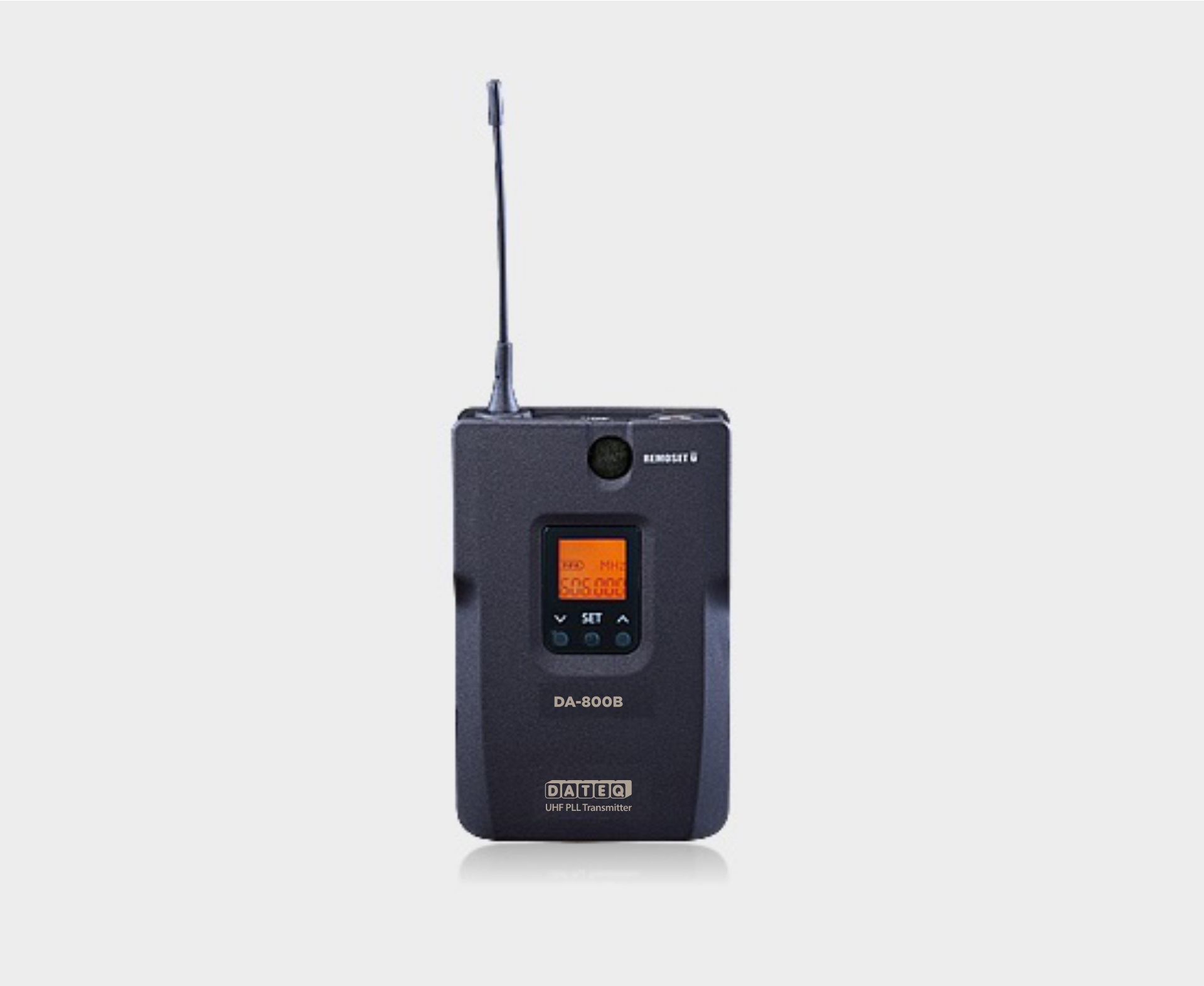

This innovative bodypack transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes without audio input. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

To cope with music instruments a pad of -20 dB is designed. Recharging circuit and connector are already built in case users want to upgrade the system.

DA-800B/6



Frequency PreparationPLL Synthesized Control
Carrier Frequency Range614~650MHz
Frequency SettingREMOSET U(Receive)
RF OutpusLow / High
Stability<±10KHz@Fc
Frequency Deviation±48KHz
Spurious Emissions<-50dBc
FunctionMute, Auto Power Off, Sensitivity Adjust, Low Battery
DisplayLCD + LED
Input Connector4P Mini XR
ControlsPower, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
BatteryUM3, AA x2
