DA-801R/6

 179,00 Excl. BTW

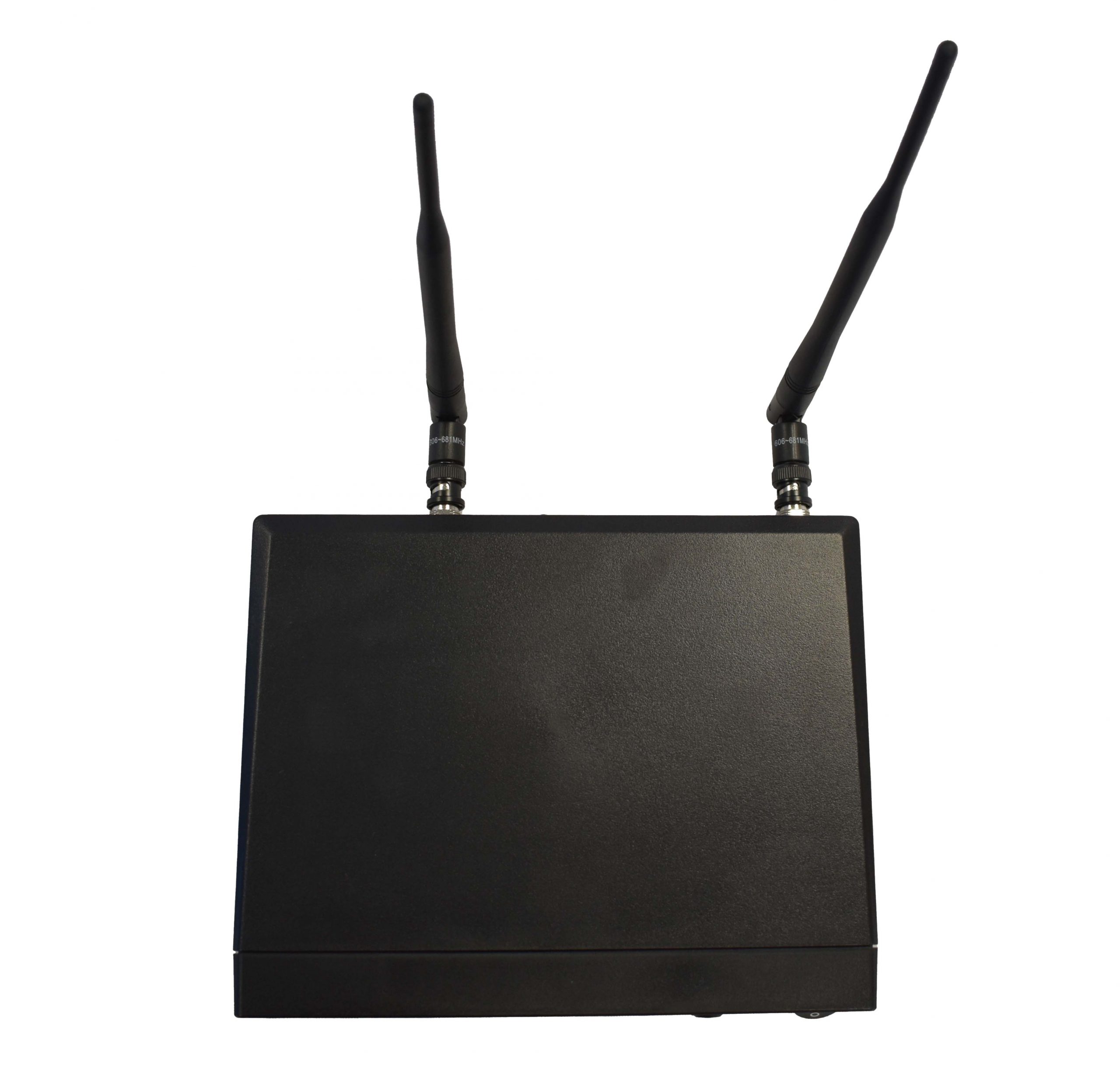

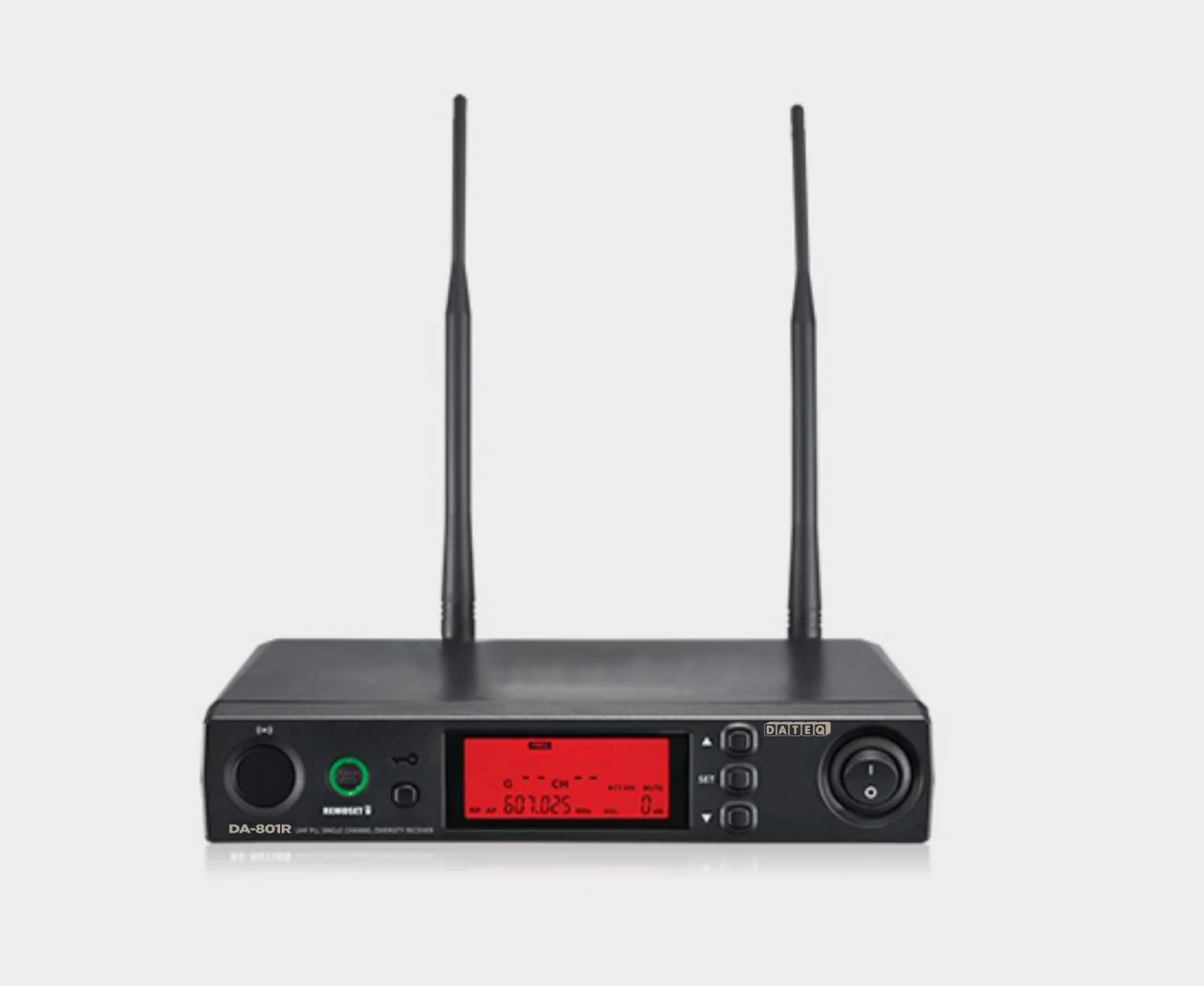

800 Series diversity UHF PLL receiver 614-650MHz, Remoset Ultrasonic

Beschrijving

DA-800 System

Next generation wireless technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within limited bandwidth. The patent pending REMOSET sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.

DA-801R
Frequency SettingREMOSET U
Receiving ModeAntenna Diversity
Bandwidth36MHz, 614-650MHz
S/N Ratio>105dB(A)
T.H.D<0.6%@1KHz
Sensitivity-95dBm,S/N>80dB
Rejection Ratio>80 dB
Frequency Response50Hz~16KHz±2dB

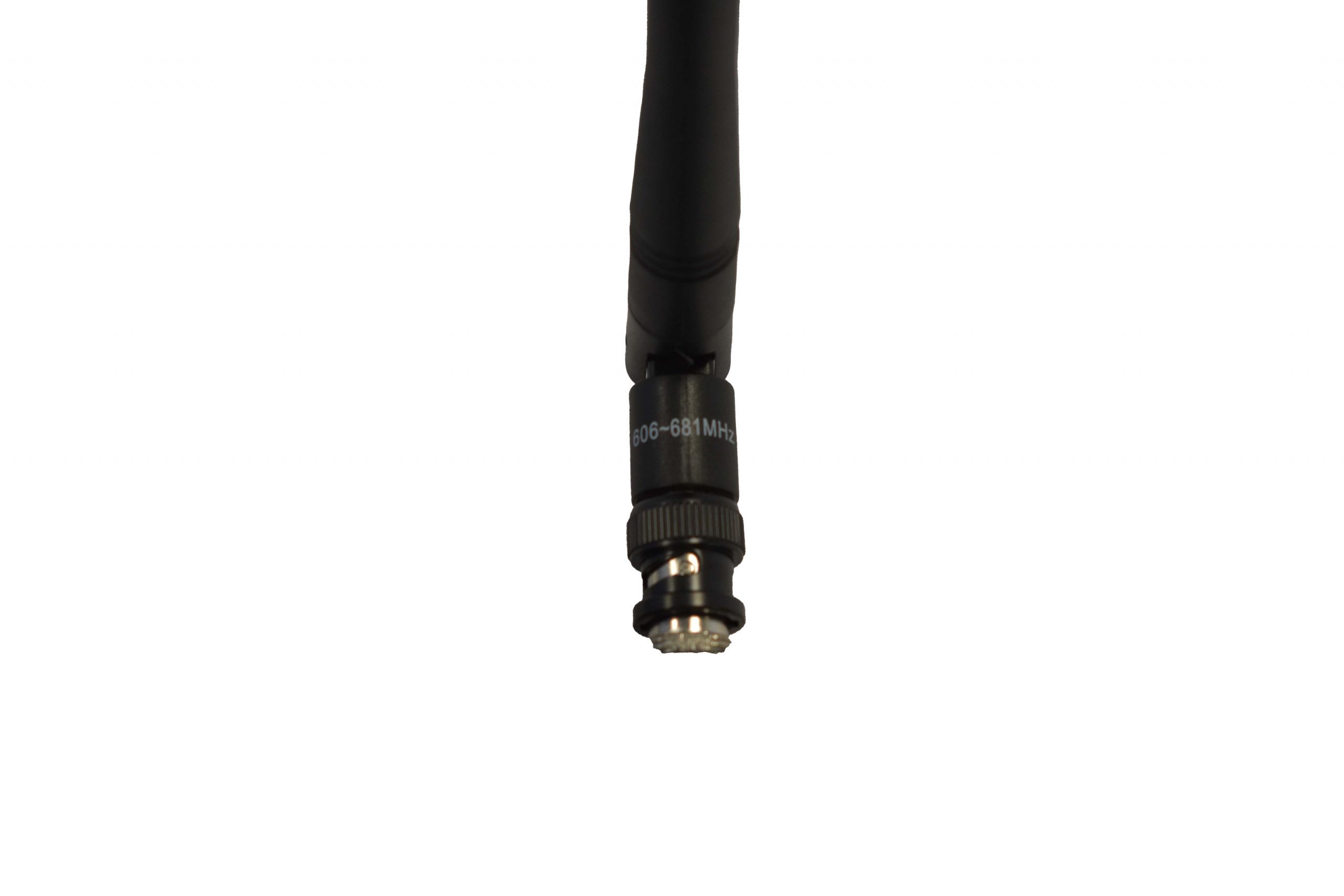

Antenna TypeBNC Socket
Antenna Booster PowerDC12~15V/100mA
DisplayLCD
Display ContentsGroup, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF
Meter, Frequency Scan, Audio Level, Volume
ControlsPower ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output
Attenuaiton(XLR), Frequency Scan(ON/OFF)
Audio Output LevelRef/ ±22.5KHz Dev@1KHz Tone
ψ6.3 Phone Jack/ -10dBV
XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC)
Audio Output Impedance600Ω
SquelchPilot Tone & Noise Mute

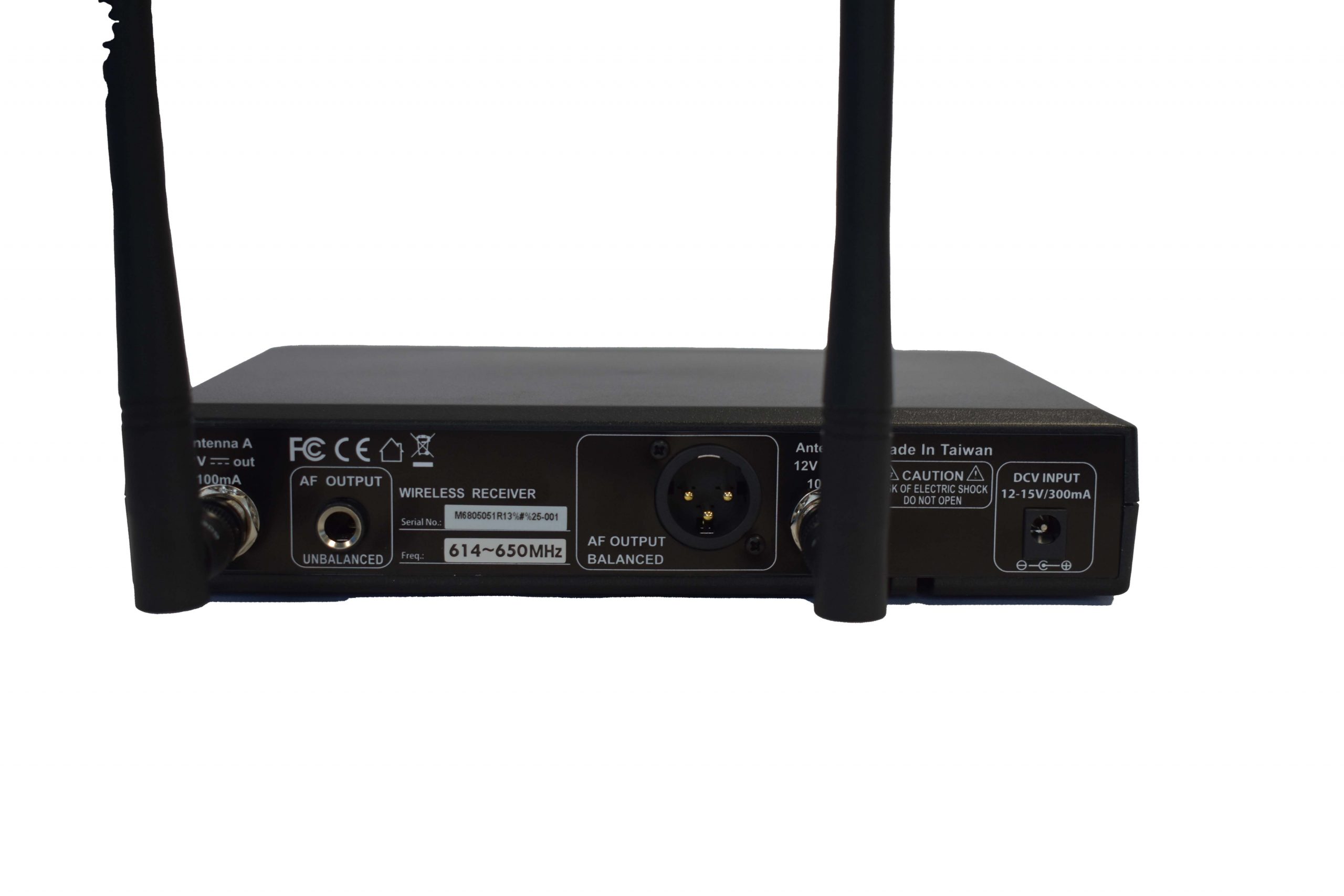

Output Connector1 independent balanced XLR and one Ø6.3mm unbalanced.
Power SupplyDC12~15V/300mA
Dimension (mm)212.3mm(W)* 38.3mm(H)* 144mm(D)

DATASHEET

DA-801R
