DA-901R/6

 269,00 Excl. BTW

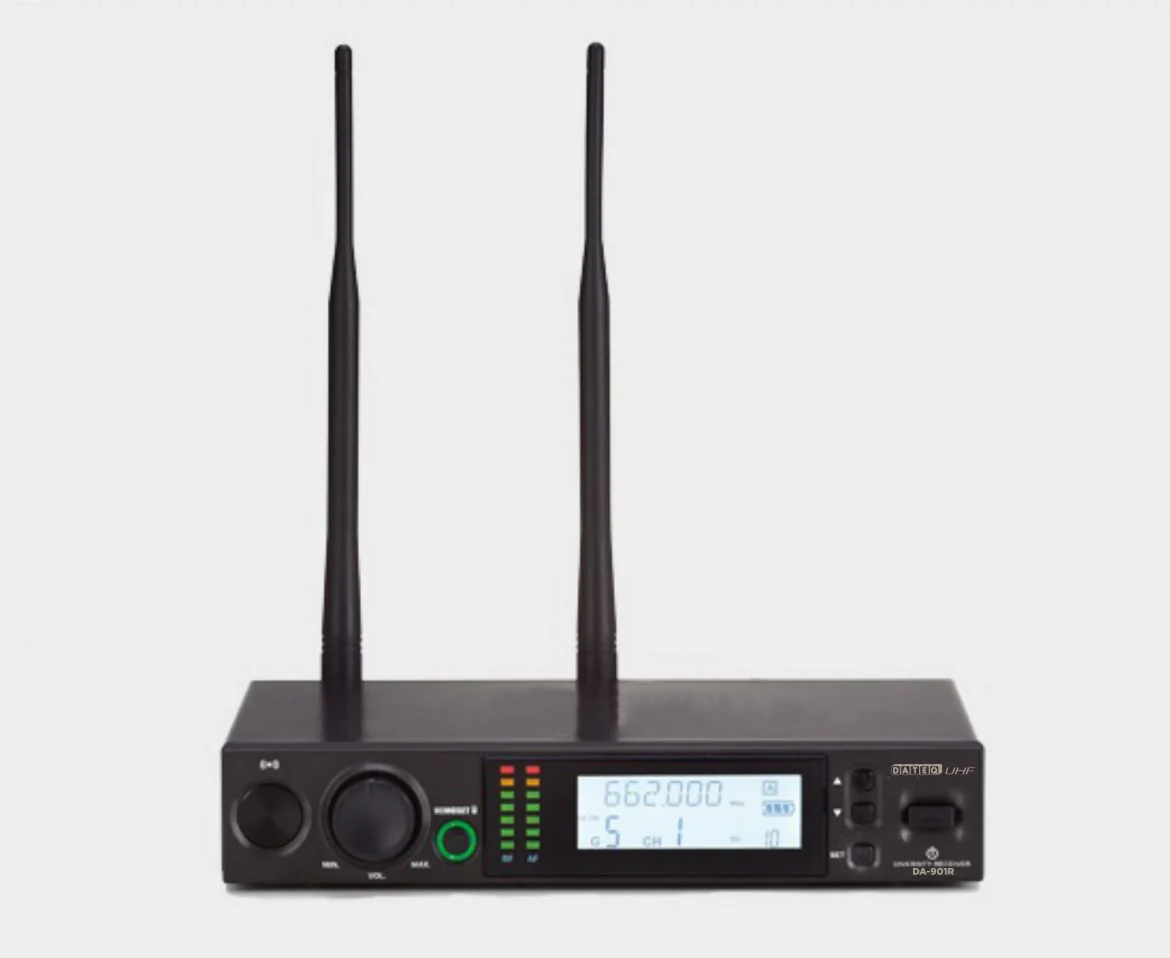

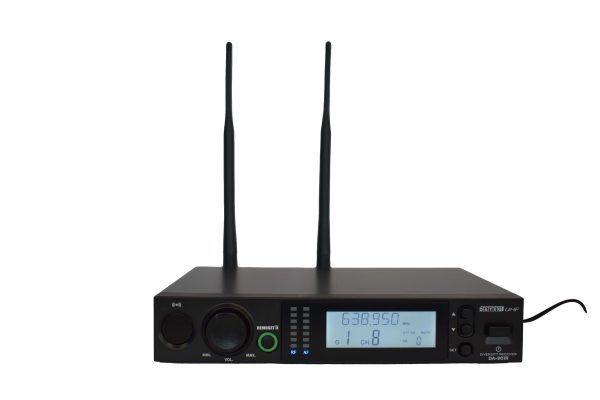

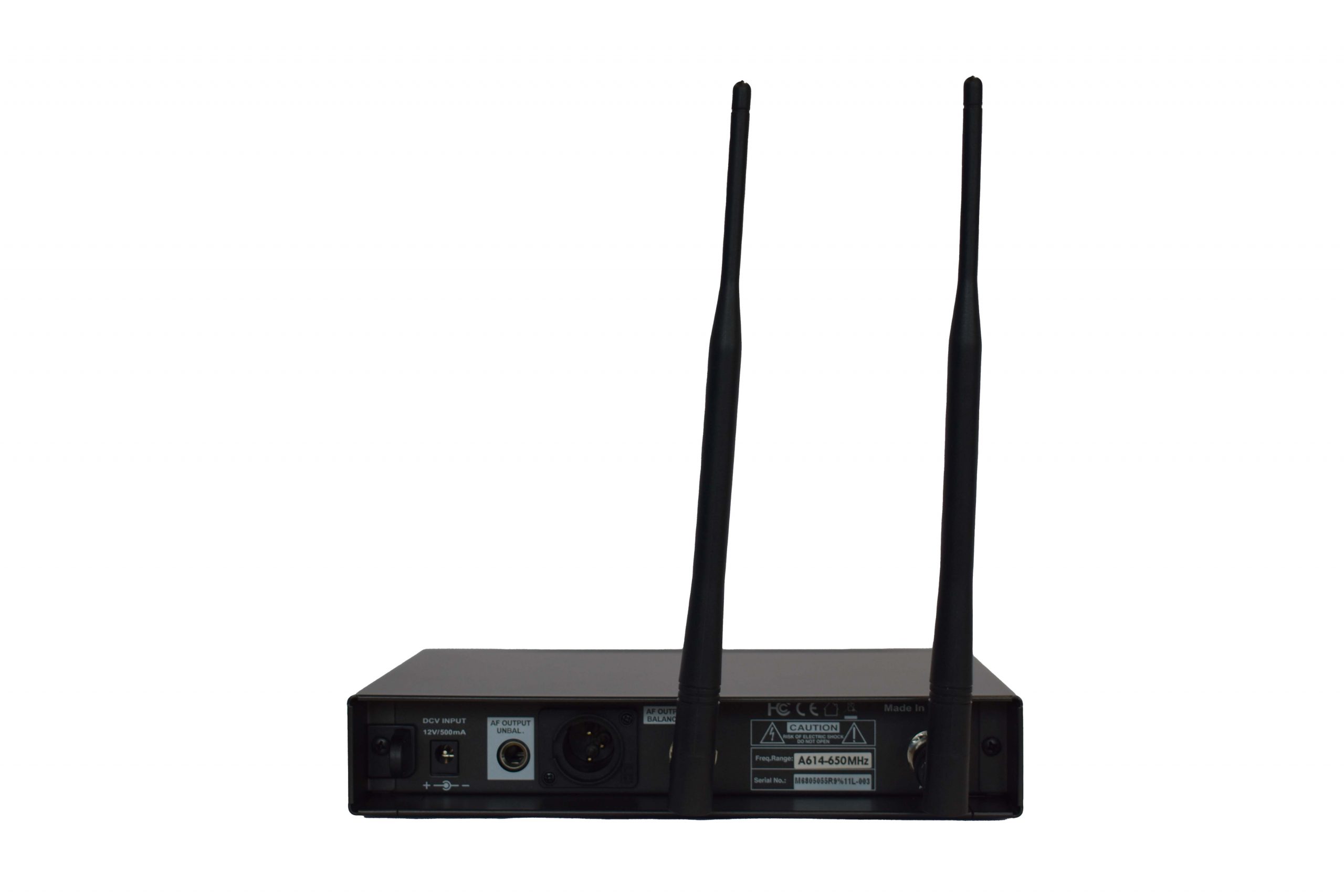

900 Series true diversity UHF PLL receiver 614-650MHz, Remoset Ultrasonic

Beschrijving

DA-900 System

Next generation true diversity system. To cope with the development of the technology it features function. It synchronizes a transmitter with data of frequency, gain control, ID and so on by pushing a button. Scan function is also provided. DA-900 is intended for medium and large venues.

DA-901R/6
Frequency PreparationPLL Synthesized Control
Carrier Frequency RangeUHF 614~650 MHz
Frequency SettingRemoset U Ultrasonic
Receiving ModeTrue Diversity
Bandwidth36MHz
S/N Ratio> 105dB
T.H.D<0.6% @ 1KHz
Sensitivity-95dBm, S/N>80dB
CMRR>80 dB
Audio Frequency Response50Hz~18KHz±2dB
AntennaBNC (F)
Antenna Bosster PowerDC12~15V/100mA
DisplayLCD
Display ContentsGroup, Channel, Frequency, Battery Status, Antenna A/B, AF Meter(LED BAR), RF Meter (LED BAR)
ControlsPower ON/OFF, Group, Channel, Frequency, Audio Level, Lock-on, Volume, Output Pad, Frequency Scan (ON/OFF)
Audio Output LevelRef:±22.5KHz Dev@1KHz Toneψ6.3 Phone Jack:-10dBV XLR Jack:-4dBV(Line)、-24dBV(MIC)
AF Output Impedance600Ω
SquelchPilot Tone & Noise Mute
Output ConnectorBalanced XLR Socket x1 / Unbalanced φ6.3mm PHONE JACK x1
Power SupplyDC12~15V/500mA
Dimensions212.3mm(W)*38.3mm(H)* 144mm(D)

DATASHEET

DA-901R
